How to LOGIN to a MacBook Using the USB Serial Port and a Terminal

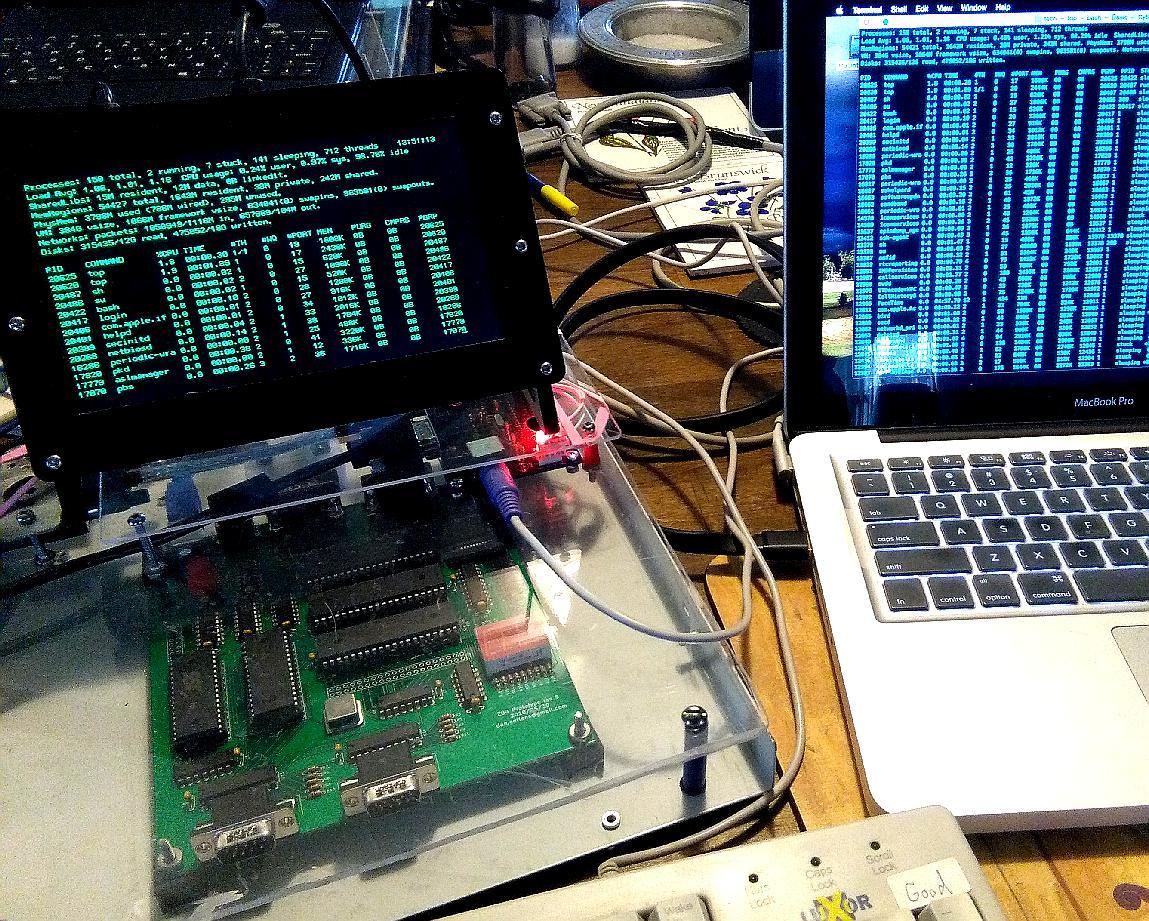

VT-100 Terminal Board (Geoff Graham-Peter Hizalev software/hardware design), with VGA monitor & PS-2 keyboard, logged into MacBook on USB serial port, running "top" to display most active sessions.
Login to USB Serial Port - using a VT100 or any Terminal - Apr. 9, 2020
[Updated: May 9, 2020]
----------------------------------------------------------------------------------------------------
You can use a USB serial port, to LOGIN & access a MacBook. This is useful
for testing a VT-100 serial board, and also if you want to have your
Z-80 NorthStar computer control your MacBook "bash"
session.
You have to create a file called: serialconsole.plist
with the text shown below. You may need to be root on the Mac to do this.
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE
plist PUBLIC "-//Apple//DTD PLIST 1.0/EN"http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
<key>Label</key>
<string>serialconsole</string>
<key>ProgramArguments</key>
<array>
<string>/usr/libexec/getty</string>
<string>vt100.115200</string>
<string>cu.usbserial-AC00HEIO</string>
</array>
<key>KeepAlive</key>
<true/>
</dict>
</plist>
MacOSX uses these .plist files. The are just XML parameter stuff, and
you create "serialconsole.plist" in this directory:
/Library/LaunchDaemons/
The serial port running thru the USB port on the MACbook, is called
by the string: cu.usbserial-AC00HEIO
on MCL's MACbook. It will be a different name on a different MACbook.
The USB driver, which creates the "cu.usbserial-AC00HEIO" device, gets
invoked and the device gets created in "/dev" directory, when a USB
device is plugged in. You should be able to do a "ps -aux"
(to see
all running sessions), or do a "ls -l" of the "/dev" directory to see
what the USB device is called on your MacBook. Each MacBook seems to
name the device with a different hex string.
You need to create your
.plist file with the name for the USB port on YOUR MacBook.
The "serialconsole.plist" file defines an application called: serialconsole
and that program has these arguments:
/usr/libexec/getty - the tty program, uses: /etc/gettytab
vt100.115200 -
the place in gettytab where baudrate, parity,
and other parms
get set.
cu.usbserial-AC00HEIO - the USB serial port, created by the FTDI
drive in MacOSX (you need to use yours!)
The config file: /etc/gettytab
has the definition info for the VT100 terminal that connects to the
USB port. (The VT100 "Terminal"
is the little Geoff Graham board, used
by the Z80 "NorthStar" SBC (Single Board Computer)).
Edit to "/etc/gettytab" to get VT-100 serial port access to work:
-------------------------------------------------------------------------------------------------------------
(part of the contents of "gettytab" file are shown... )
( file inserted with vi command :r<filename> )
#
# Parity defaults to even, but the Pc entry
and all the `std' entries
# specify no parity. The different parities are:
# (none): same as even except -inpck instead of inpck for login.
# ep: getty will
use raw mode (cs8 -parenb) (unless rw is set) and
# fake parity. login will use even parity (cs7 parenb -parodd).
# op:
same as ep except odd parity (cs7 parenb parodd) for login.
# op overrides ep.
# ap: same as ep except -inpck instead of inpck
for login.
# ap overrides op and ep.
# np: 1. don't fake parity in getty. The fake parity garbles
#
characters on non-terminals (like pccons) that don't
# support parity. It would probably better for getty not to
#
try to fake parity. It could just use cbreak mode so as
# not to force cs8 and let the hardware handle the parity.
#
login has to be rely on the hardware anyway.
# 2. set PASS8, giving cs8 -parenb -istrip -inpck.
# np:ep: same as np except inpck.
#
np:op: same as np:ep except for parodd (but parodd is overridden).
# np:ap: same as np except istrip.
#
default:\
:cb:ce:ck:lc:fd#1000:im=\r\nDarwin/BSD (%h) (%t)\r\n\r\n:sp#1200:
#
# --- MCL Hack! --- from: github.com/mastmees/STM32F030F4-VGA/blob/master/STM32F030F4/Firmware/ChibTerm/readme_osx_serial_console
# --- set up the USB port for VT100 access as the device console. Really! Lets you use a Macbook
like VAX or DECSystem 2020... :)
# vt100.115200:115200-baud:\
# :np:sp#115200:cb:ce:ck:lc:im=\r\nDarwin/BSD (%h) (%t)\r\n\r\n:tt=vt100:
#
vt100.115200:38400-baud:\
:np:sp#38400:cb:ce:ck:lc:im=\r\nDarwin/BSD
(%h) (%t)\r\n\r\n:tt=vt100:
# --- End of Hack. Note that the active option here sets the Serial port to 38400 baud, default for VT-100 board ----
(End of the inserted piece of "/etc/gettytab" file from MacBook Pro. )
(As indicated, this is from URL: )
( ===> github.com/mastmees/STM32F030F4-VGA/blob/master/STM32F030F4/Firmware/ChibTerm/readme_osx_serial_console )
Starting the Serial-Port MacBook Session:
--------------------------------------------------------------------------------------------
To engage the USB port as a Serial Console for the MAC:
As root:
launchctl load -F /Library/LaunchDaemons/serialconsole.plist
launchctl start serialconsole
To End:
launchctl stop serialconsole
launchctl unload -F /Library/LaunchDaemons/serialconsole.plist
-----------
Once logged into the Mac's USB port as a serial console, you can
set the VT100 terminal characterisitcs,
as follows:
stty rows 24
stty columns 80
export LINES=24 (you can use 38 instead of 24,
on VT100 board if you want)
-----------
On the VT100 emulator board (Peter Hizalev's Board, using Geoff Graham's
code in the chip), can use either 24 or 38 display lines.
The 38 line
option is useful, if you want to display a bunch of graphic-ish data on
the VT100 monitor.
To bring up Config-Screen on Geoff-Graham-VT100: SHIFT-F12
And then K to save, or J to discard. (Note, you lose the
VT100 display, if you invoke the SHIFT-F12 config. screen)
***** Update: Critical Tweak Needed *****
If using the Geoff-Graham-VT100 (& Peter Hizalev's board from Tindie)
you might have to INVERT SERIAL for (RS232). I had to do this on my
version of Peter's board. (Note; Peter Hizalev's board works fine -
he sold me his early version which has VGA and Composite video, and
it works great on the Z-80 and the MacBook.
Thanx Peter. )
You can INVERT the RS232 serial link with option "F". TO do:
- (on the VT-100 board emulator attached keyboard)
SHIFT-F12
(brings up the config. screen)
- Press "F"
- Select option "2" to invert
- Press "K" to save the changes (for the session).
Remember, to connect to the MacBook or the Z-80, you need to have a
"Null-Modem" cable in circuit between the VT-100 emulator board and
the device you
want to connect to. Without doing the INVERT SERIAL
option, I would get garbage characters, but once the INVERT SERIAL
option was engaged, the link worked perfectly. You can
even run
"top" on the VT-100 "terminal" and monitor your MacBook's operation
in real-time. You have a complete "bash" session, and /etc/gettytab
lets the VT-100 session use some basic screen-addressing control
codes.
You can run VI on the VT-100 "terminal" session (board), and it seems
to work, but badly. (I don't know the old keyboard-only up and down
sequences - but if you do, it might be usable. Probably with some
tweaks to the /etc/gettytab table, one might get it
working fine.)
This trick should also let you "dial-in" to a MacBook, if you have
a phone-line modem. Why do this? Well, what if the internet is
fully hacked, tapped and meta-monitored in the country where you
live, but you still want to communicate with the world? Just dial-in
to a remote MacBook, and run Kermit to upload/download
files. :)
Of course, you'll need a modem for your VT-100 "terminal" as well.
-------------------
MCL, Apr. 9, 2020 / May 9, 2020
